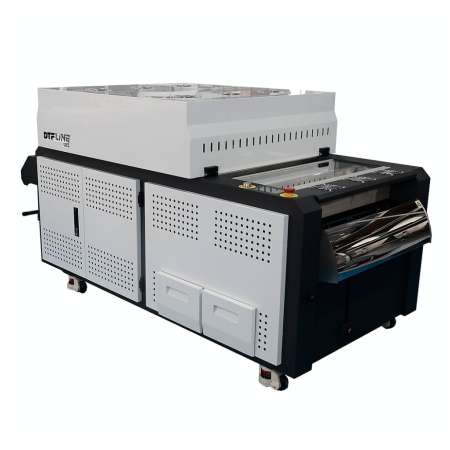

24" NXT-GEN 24R Automated Powder Application and Curing Machine (for DTF Printers with 1-3 Print Heads) - Regular Tunnel

This NXT-GEN POWDER APPLICATION MACHINE is designed as an in-line addition to your Wide Format Roll printing DTF Printer including DTF Printers by DTFPRO, Oric, Audley, HJD, Titan, Coldesi, All American / DTF Station, STS, Mimaki, Roland and any other roll-feeding DTF printers.

This 24R Model Features a Regular-Sized Baking Tunnel and is ideal for DTF Printers with up to 3 printheads.

The NXT-GEN 24R DTF Powder Applicator and Dryer unit can cure DTF rolls up to 24 inches wide and is compatible with all roll to roll Direct to Film printers with up to 3 Printheads (works perfectly with DTF printers utilizing 1, 2 or 3 Printheads). If your printer has 4 printheads or more, you need the NXT-GEN 24L (which has a longer baking tunnel and therefore can better handle the speed of 4+ Printhead systems)

Available Options:

Features:

• Advanced Built-in HEPA 2 Layer Dual Air Filters: Filter out any fumes from DTF powder. Low maintenance, easy to replace filters.
• Advanced Film Detector: With the effective film sensor, it automatics turns off and on the power station, and heating elements which results in a lower power requirement.
• Low Power Consumption: 1800W / 11A / 220V
• Advanced powder ventilation within the powder station: Heating fans help reduce any powder build-up in the powdering station, less maintenance.
• Air vacuum conveyor system: There's an air vacuum on the front and end of the conveyor to keep the films from slipping/moving, it aligns the dtf films to get even heating throughout the heater/dryer.
• Advanced Take-Up System: Additional tension bar to roll up the finished dtf films better and compact as needed.
• LED Touch Screen: Easy to monitor and control.
• Pre-Heating: Ensures better ink and power adherence.
• Auto-Powder Recycling: No need to manually recirculate powder
• Double Heating: Upper & Lower Heating ensures a better quality print+powder curing. Use of high efficiency lamps saves up to 5KW over competing shakers.

Weight and Dimensions (including packaging):

• 760 lbs
• 46" x 44" x 45"
