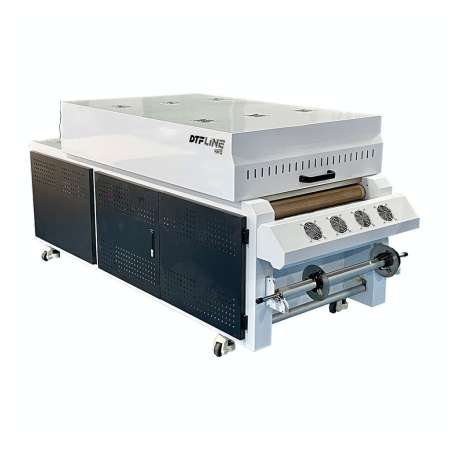

32" NXT-GEN 32L Automated Powder Application and Curing Machine (for DTF Printers with 4-6 Print Heads) - Extra Long Tunnel

This NXT-GEN POWDER APPLICATION MACHINE is designed as an in-line addition to your Wide Format Roll printing DTF Printer including DTF Printers by DTFPRO, Oric, Audley, HJD, Titan, Coldesi, All American / DTF Station, STS, Roland and any other roll-feeding DTF printers.

This 32L Model features a longer baking tunnel than the 32R Model, and is therefore better suited for faster DTF Printers that utilize 4 or more Printheads.

The NXT-GEN 32L DTF Powder Applicator and Dryer unit can cure DTF rolls up to 32 inches wide and is compatible with all roll to roll Direct to Film printers with 4 or more Printheads (works perfectly with DTF printers utilizing 4, 5 or 6 Printheads). If your printer has 3 printheads or less, you need the NXT-GEN 32R (which has a shorter baking tunnel and therefore is better suited to the print speeds of fewer printhead systems)

Available Options:

Features:

• Advanced Built-in HEPA 2 Layer Dual Air Filters: Filter out any fumes from DTF powder. Low maintenance, easy to replace filters.
• Advanced Film Detector: With the effective film sensor, it automatics turns off and on the power station, and heating elements which results in a lower power requirement.
• Low Power Consumption: 2000W / 14A / 220V
• Advanced powder ventilation within the powder station: Heating fans help reduce any powder build-up in the powdering station, less maintenance.
• Air vacuum conveyor system: There's an air vacuum on the front and end of the conveyor to keep the films from slipping/moving, it aligns the dtf films to get even heating throughout the heater/dryer.
• Advanced Take-Up System: Additional tension bar to roll up the finished dtf films better and compact as needed.
• LED Touch Screen: Easy to monitor and control.
• Pre-Heating: Ensures better ink and power adherence.
• Auto-Powder Recycling: No need to manually recirculate powder.
• Double Heating: Upper & Lower Heating ensures a better quality print+powder curing. Use of high efficiency lamps saves up to 5KW over competing shakers.

Weight and Dimensions (including packaging):

• 840 lbs
• 90" x 47" x 45"
