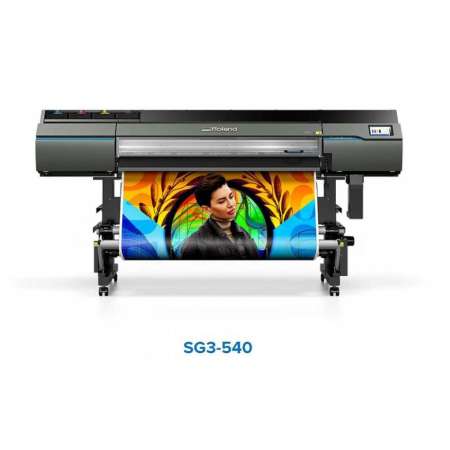

Roland TrueVIS SG3-540 54" Eco-Solvent Printer/Cutter

The Roland TrueVIS SG3-540 is a next-generation 54" eco-solvent printer/cutter that delivers exceptional print quality, productivity, and ease of use. Designed for sign and graphics providers, this versatile machine is ideal for producing a wide range of applications, including signage, vehicle wraps, labels, decals, and apparel.

Key Features:

• 54" print-and-cut capacity handles large signage, vehicle wraps, and wall graphics
• True Rich Color 3 technology for ultra-vivid color and smooth transitions
• 7-inch LCD touch-panel control with intuitive interface
• Automatic media gap and feed adjustment for efficient setup
• Integrated take-up unit for unattended printing
• Perforated sheet cut function for easy separation of prints
• Eco-solvent TR2 inks in CMYK configuration
• Includes VersaWorks® 6 RIP software for streamlined workflow

Specifications:

• Print Width: Up to 52.9 inches
• Ink Configuration: CMYK
• Ink Type: TR2 eco-solvent inks (500 ml pouches)
• Print Resolution: Up to 1200 dpi
• Cutting Speed: 10 to 300 mm/s (0.39 to 11.8 in/s)
• Cutting Blade Force: 30 to 500 gf
• Media Thickness: Up to 1.0 mm (39.3 mil) with liner for printing
• Media Width: 11.7 to 54 inches (297 to 1,371 mm)
• Connectivity: Ethernet (100BASE-TX/1000BASE-T, automatic switching)
• Power Consumption: Approx. 1,090 W (during operation)
• Dimensions (W x D x H): 103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)
• Weight: Approx. 404 lbs (183 kg)

Applications:

The SG3-540 is versatile and suitable for various applications, including:

• Signage and banners
• Vehicle wraps and graphics
• Labels and decals
• Apparel and heat transfer graphics
• Window graphics
• Wall decor and custom interiors
