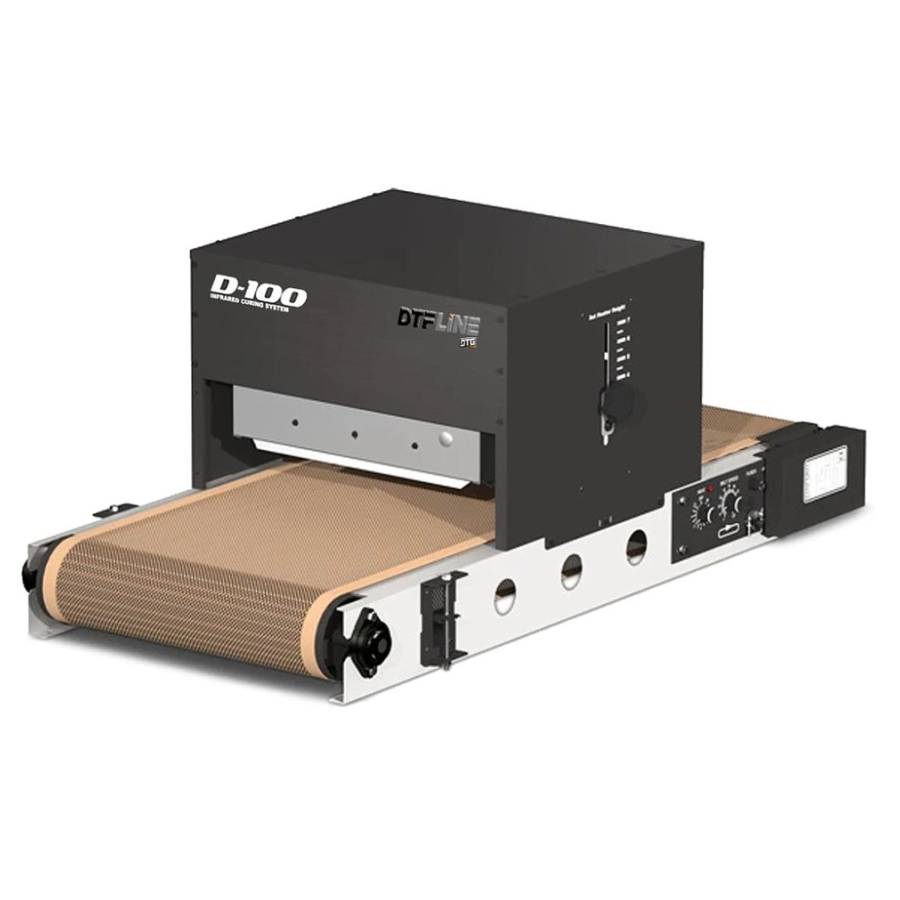

Vastex D-1000 Compact Infrared Conveyor Dryer - DTF Transfer Powder Curing

Vastex D-1000 is an entry-level tabletop dryer that can cure DTF Transfer Film after printing and powder application. It can also be used to cure printed garments such as screen printed or DTG printed garments.

The dryer offers full operator control, with adjustable heater height/angle, heat intensity, and belt speed. It has an approximate capacity of 50-100 t-shirts per hour.

This is the perfect curing system for those who want to save space and costs, in contrast to the larger industrial-sized powdering and drying machines that can take up the space of a small room and cost around $10,000.

The dryer features a HI/LO heat adjustment and variable belt speed, providing you with complete control over your curing process. It is compact yet powerful due to the dense coil pattern and heater shields, which eliminate hot and cold spots. As a result, this conveyor dryer is an ideal choice for any small business or home-based operation looking for an economical dryer with a small footprint.

Available Products:
(swipe table to scroll)

D-100 (18 inch)	D-1000 (26 inch)	DLINE-65 (26 inch)
Belt Width: 18" (46 cm) Heater Width: 16" (41 cm) Chamber Length: 18 Dimensions, inch (LxWxH): 46x24x24 Power: 120V / 1625W ~50 T-Shirts/ Transfers per hour Rolling Stand Sold Separately (if required)	Belt Width: 26" (66 cm) Heater Width: 20" (51 cm) Chamber Length: 18 Dimensions, inch (LxWxH): 56x32x24 Power: 240V / 2050W 50-100 T-Shirts/ Transfers per hour Rolling Stand Sold Separately (if required)	Belt Width: 26" (66 cm) Heater Width: 26" (65 cm) Chamber Length: 39 Dimensions, inch (LxWxH): 70x29x24 Power: 220V / 4800W Up to 200 T-Shirts/ Transfers per hour Includes $500 Rolling Stand
$2,349.99 view item	$2,699.99	$3,249.99 view item

Please note, this is a HEATING machine, which means that you will still need to apply the powder manually. However, you can integrate this conveyor dryer into your assembly line for post-powdering, conveyor-based curing of your transfer sheets or rolls.

Vastex D-1000 Features:

• PTFE coated fiberglass belt with tracking system
• Adjustable HI/LO temperature, height/angle, and belt speed
• Approx 50-100 t-shirts per hour
• Powerful infrared heater with tight coil pattern and heat shields
• Best warranty, high quality, exceptional service

Specifications:

• Estimated shirts/hr: 50-100
• Heating Type: Infrared
• Belt Width: 26"
• Heating Width: 20"
• Dimensions: (LxWxH) 56" x 32" x 24"
• Power: 240V / 2,050W
• Body: Heavy-duty construction

Please note: Assembly required. Fume extractor recommended.
