DLINE-65 Compact Infrared Conveyor Dryer - DTF Transfer Powder Curing

DLINE-65 Compact Infrared Conveyor Dryer - DTF Transfer Powder Curing - QGCxpcKNif0 Play Video QGCxpcKNif0
DLINE-65 Compact Infrared Conveyor Dryer - DTF Transfer Powder Curing - -sM12fEOVHI Play Video -sM12fEOVHI

DLINE-65 Compact Infrared Conveyor Dryer - DTF Transfer Powder Curing

$3,749.99
$5499.99

0% APR for 6 months

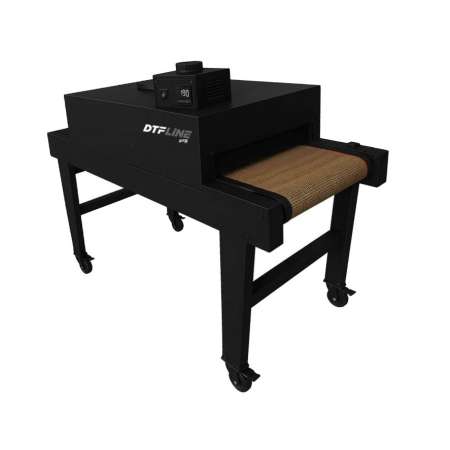

DLINE-65 Compact High-Performance Conveyor Dryer for DTF Transfers

Experience professional-grade curing power with the DLINE-65 Conveyor Dryer, expertly engineered for DTF (Direct to Film) printing workflows.

Available Products:
(swipe table to scroll)

D-100 (18 inch)D-1000 (26 inch)DLINE-65 (26 inch)
DLINE-65 (26 inch)DLINE-65 (26 inch)DLINE-65 (26 inch)
  • Belt Width: 18" (46 cm)
  • Heater Width: 16" (41 cm)
  • Chamber Length: 18
  • Dimensions, inch (LxWxH): 46x24x24
  • Power: 120V / 1625W
  • ~50 T-Shirts/ Transfers per hour
  • Rolling Stand Sold Separately (if required)
  • Belt Width: 26" (66 cm)
  • Heater Width: 20" (51 cm)
  • Chamber Length: 18
  • Dimensions, inch (LxWxH): 56x32x24
  • Power: 240V / 2050W
  • 50-100 T-Shirts/ Transfers per hour
  • Rolling Stand Sold Separately (if required)
  • Belt Width: 26" (66 cm)
  • Heater Width: 26" (65 cm)
  • Chamber Length: 39
  • Dimensions, inch (LxWxH): 70x29x24
  • Power: 220V / 4800W
  • Up to 200 T-Shirts/ Transfers per hour
  • Includes $500 Rolling Stand
$2,490.99

view item

$2,910.99

view item

$3,749.99

Built for industrial-level performance, the DLINE-65 comes complete with a stand-alone rolling stand and features infrared conveyor technology designed to efficiently cure DTF transfer sheets or rolls after printing and powder application.

Versatile and powerful, this compact unit can also be used for curing printed garments, including screen-printed or discharge-printed apparel - making it an ideal solution for high-efficiency, multi-purpose production environments.

Please Note: The DLINE-65 is a powder-curing machine only - powder application must be done manually. However, it can be easily integrated into your production line to dry or cure DTF transfer sheets or rolls after powdering, in a continuous conveyor process.

DLINE-65 Features:

  • Infrared Conveyor Technology - Enables smooth, continuous drying - ensures even heat distribution, eliminating hot and cold spots for consistent, professional curing results.
  • Speed & Temperature Controls - Gives you precise control over temperature and curing speed to match your specific DTF setup.
  • Dense Coil Pattern with Heater Shields - Delivers even, powerful heat distribution, eliminating hot and cold spots for consistent curing.
  • PTFE-Coated Fiberglass Belt with Tracking System - Provides stable, smooth belt movement and prevents slippage for continuous, worry-free operation.
  • Curing Speeds up to 200 Units - Designed for high productivity while maintaining top-quality output.
  • Compact Yet Powerful Design - Ideal for home-based or small businesses, offering professional-grade performance with a minimal footprint.
  • Built for Quality and Longevity - Backed by exceptional service and reliability, making it a cost-effective investment for growing DTF operations.

Specifications:

  • Max Throughput: Up to 200 shirts/hr (estimated)
  • Heating Type: Infrared
  • Belt Width: 26 inches
  • Heating Width: 26 inches
  • Chamber Length: 39 inches
  • Overall Dimensions (L x W x H): 70 x 29 x 24 in
  • Power: 220V / 4,800W
  • Build Quality: Reinforced steel frame for durability

Please Note: Assembly Required. Fume Extraction Recommended - the DLINE-65 is extraction-exhaust ready for safer operation (sold separately).


CAUTION: WORK IN A WELL VENTILATED AREA and wear PROTECTIVE GEAR (including masks and gloves) while handling specialty printing and curing materials and techniques (such as DTF, DTG, UV, WTT, etc.), due to the potential hazards from fumes and processes. It's strongly advised to use a fume extractor in addition to maintaining proper ventilation when using DTF powder.
Operating any specialty ink printing devices and materials, including inks, chemicals, powders, etc., is entirely at the user's risk.
To reduce the chances of ink clogs and film warping, it is strongly advised to maintain a room humidity 55%-75% and a temperature 75°-80°F / 24°-27°C.


Click here to learn what is DTF and understand its advantages over other garment printing methods.

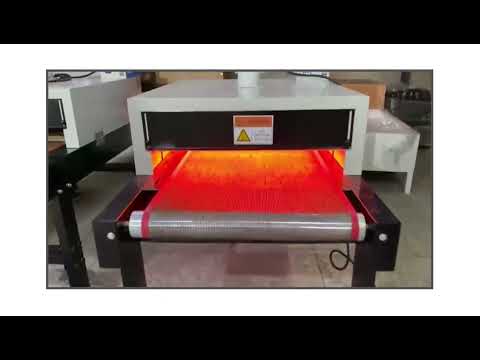

Video:
